उत्पाद विवरण:
|
| मैक्स। ड्रिलिंग गहराई: | 54मी | Max. मैक्स। drilling diameter ड्रिलिंग व्यास: | 2500 मिमी |
|---|---|---|---|
| टॉर्कः: | 320 केएन.एम | Max. मैक्स। crowd pressure भीड़ का दबाव: | 230 न |
| घूर्णन की गति: | 5~27 आरपीएम | मैक्स। भीड़ खींचो: | 220 kN |
| कुल वजन: | 89 टी | मुख्य चरखी रेखा खींचो: | 320 kN |
| यात्रा गति: | 1.4 किमी/घंटा | आघात: | 6000 मिमी |
| ऑपरेटिंग ऊंचाई: | 22600 मिमी | ||
| प्रमुखता देना: | hydraulic piling rig with 54m drilling depth,rotary drilling rig with 320kN.m torque,deep foundation piling rig 2500mm diameter |
||

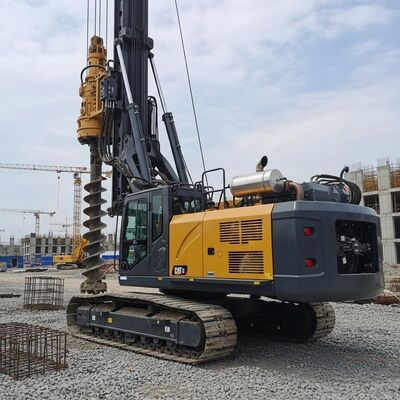

The KR300C Rotary Drilling Rig with CAT C9 Engine is a professional piling machine designed for demanding deep foundation engineering applications. Built with a reinforced CAT undercarriage and advanced hydraulic systems, this rotary drilling rig offers excellent drilling power, operational stability, and long service life.
With a maximum drilling depth of 54 meters and drilling diameter up to 2500mm, the KR300C is ideal for bridge foundations, commercial buildings, rail transit systems, and industrial infrastructure projects.
The KR300C piling rig is equipped with a high-torque rotary drive capable of delivering 320kN.m torque. The strong drilling capability allows efficient operation in dense clay, gravel, sand layers, and hard rock formations.
Powered by the CAT C9 diesel engine, the drilling rig delivers strong power output and excellent fuel economy for long-duration construction projects.
The engine system ensures smooth operation even in harsh construction environments.
The KR300C hydraulic rotary drilling machine uses premium imported hydraulic components:
This advanced configuration improves hydraulic response speed and enhances machine reliability.
| Parameter | Specification |
|---|---|
| Model | KR300C |
| Max Torque | 320kN.m |
| Max Drilling Diameter | 2500mm |
| Max Drilling Depth | 54m |
| Rotation Speed | 5-27rpm |
| Main Winch Pull | 320kN |
| Auxiliary Winch Pull | 110kN |
| Engine | CAT C9 |
| Operating Weight | 89T |
The KR300C rotary drilling rig is widely used in:
The heavy-duty mast structure and reinforced CAT chassis provide excellent stability during drilling operations. The durable design reduces machine vibration and improves drilling precision.
TYSIM specializes in foundation engineering machinery and has obtained more than 40 patents related to piling equipment technology.
