उत्पाद विवरण:
|
| मैक्स। ड्रिलिंग गहराई: | 54मी | टॉर्कः: | 320 केएन.एम |
|---|---|---|---|
| Max. मैक्स। crowd pressure भीड़ का दबाव: | 230 न | घूर्णन की गति: | 5~27 आरपीएम |
| Max. मैक्स। drilling diameter ड्रिलिंग व्यास: | 2500 मिमी | मैक्स। भीड़ खींचो: | 220 kN |
| कुल वजन: | 89 टी | मुख्य चरखी रेखा खींचो: | 320 kN |
| यात्रा गति: | 1.4 किमी/घंटा | आघात: | 6000 मिमी |
| ऑपरेटिंग ऊंचाई: | 22600 मिमी | ||
| प्रमुखता देना: | hydraulic piling rig with 54m drilling depth,rotary drilling machine 320 kN.m torque,high-rise foundation drilling rig 2500mm diameter |
||

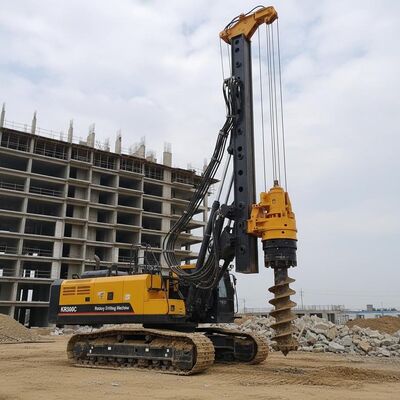

The KR300C Rotary Drilling Machine is a high-performance hydraulic piling rig designed for modern deep foundation construction. Featuring powerful torque, advanced hydraulic systems, and a reinforced CAT chassis, this drilling machine provides reliable performance for high-rise buildings, commercial complexes, bridges, and infrastructure projects.
With a maximum drilling depth of 54m and drilling diameter up to 2500mm, the KR300C is suitable for large bored pile construction under complex geological conditions.
The KR300C piling rig is equipped with a strong rotary drive system capable of generating 320kN.m torque. This allows efficient drilling through dense soil, gravel, and hard rock formations while maintaining operational stability.
The machine adopts internationally recognized hydraulic components including:
The optimized hydraulic system provides smooth operation, higher efficiency, and longer service life.
| Item | Specification |
|---|---|
| Model | KR300C |
| Max Torque | 320kN.m |
| Max Drilling Depth | 54m |
| Max Drilling Diameter | 2500mm |
| Rotation Speed | 5-27rpm |
| Crowd Force | 220kN |
| Main Winch Pull | 320kN |
| Engine Model | CAT C9 |
| Engine Power | 259kW |
| Operating Weight | 89T |
This hydraulic rotary drilling rig is widely used for:
The KR300C features a heavy-duty mast and strengthened steel structure to withstand demanding drilling conditions. The stable undercarriage ensures smooth operation during deep pile construction and increases overall construction safety.
TYSIM provides professional technical support and after-sales service for customers worldwide. The company exports piling machinery to Europe, Australia, Southeast Asia, South America, and Africa.
The KR300C hydraulic rotary drilling rig is an ideal solution for contractors seeking reliable, cost-effective, and high-efficiency foundation drilling equipment.
